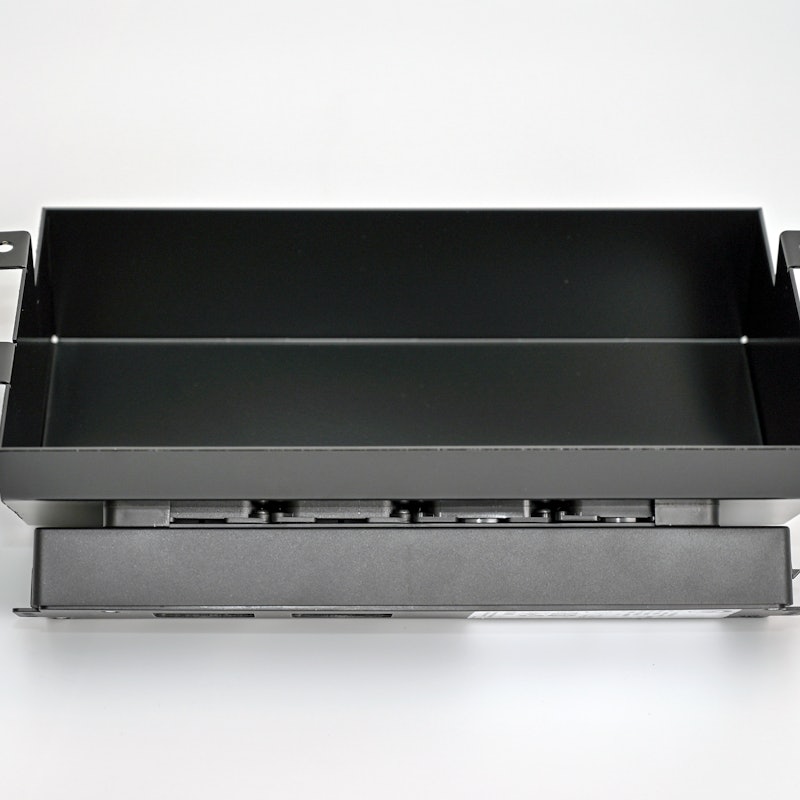

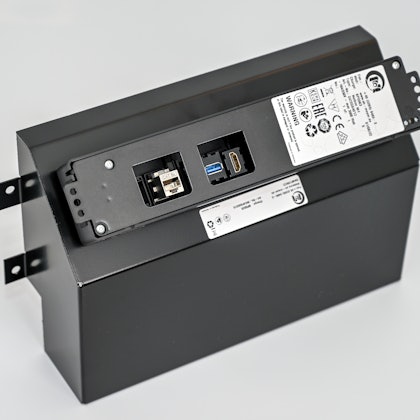

NETBOX Combi II

Alongside a spring-damped cable bushing, the NETBOX Combi II also offers a spacious cable tray. The high-quality surface and the possibility of closing the lid despite cables being connected guarantees an elegant and tidy tabletop. The four module slots are equipped according to your needs – ideal for your application.

Colors
silver
black
signal white
Request now
Technical Details
  • Combination of high-quality cable exit with spring damping, large cable box and matching electrification through proven NETBOX M4.
Characteristics
  • Spring-damped aluminum grommet
  • Large cable tray for excess cable and power supplies
  • Lid can be closed despite inserted cables
  • Magnetic transport lock to prevent unintentional opening
  • Space for 4 power, data and multimedia connections
  • Flexibility through the use of interchangeable modules
Methods of Fitting
  • Screw holes at the ends of the cable entry as well as on the cable tray for easy attachment
  • Panel thickness: min. 15 mm
Material
  • Cable outlet: Aluminium
  • Module unit: Steel / Plastic
Colors
  • Cable outlet: silver, black, white
  • Module unit: black

Example Configuration

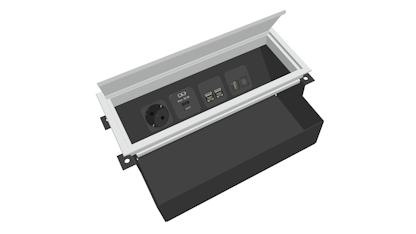

MC4DGFF013
NETBOX

Item number MC4DGFF013

Casing

The cable exit is silver. The soft-close-function slows down the lid at closing.

Cutout dimension

290 x 110 mm

Power supply

Male GST 18/3, NO output!

Wiring

1,5 mm²

Fitting

1 x Schuko (diagonal)

1 x USB-charger Type A + C, 65 W

2 x RJ45 Cat. 6A (coupler). Input: 2 x RJ45 Cat. 6A shielded (female-female-connector) without cable

1 x HDMI (coupler). Input: 1 x HDMI (female-female-connector) without cable

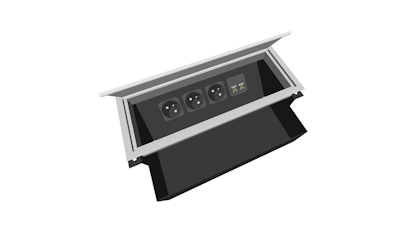

MC4DG12053
NETBOX

Item number MC4DG12053

Casing

The cable exit is silver. The soft-close-function slows down the lid at closing.

Cutout dimension

290 x 110 mm

Power supply

Male GST 18/3, NO output!

Wiring

1,5 mm²

Fitting

3 x BEK (diagonal)

2 x RJ45 Cat. 6A shielded coupler. Input data: 2 x RJ45 Cat. 6A shielded gender changer (female-female-connector)

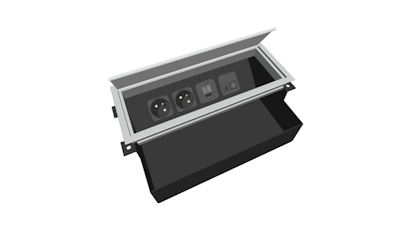

MC4DGEL053
NETBOX

Item number MC4DGEL053

Casing

The cable exit is silver. The soft-close-function slows down the lid at closing.

Cutout dimension

290 x 110 mm

Power supply

Male GST 18/3, NO output!

Wiring

1,5 mm²

Fitting

2 x BEK (diagonal)

USB-charger Type C: 1 x USB Type C, max. 20 W

1 x USB C. Input USB: 1 x USB-cable with male USB C-connector, cable length app. 400 mm

General Product and Material Information

Markings and Approvals Combi II
